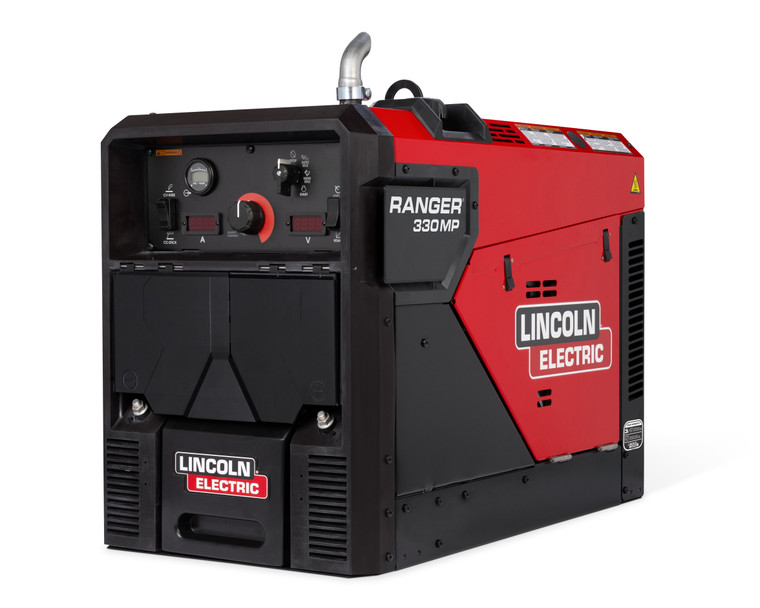

Lincoln Ranger 330MP Engine Driven Welder Generator (Rehlko) K6005-1
Ranger 330MP Engine Driven Welder Generator (Rehlko) is a simple and reliable machine with excellent multi-process capability for Stick, MIG, Flux-cored, while providing clean AC generator output.
Simple. Reliable. Ranger.
The Ranger 330MP engine driven welder generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with simple controls operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment. The Ranger 330MP engine driven welder generator features an industry-leading design that is smaller and quieter compared to other machines in its class. The Chopper Technology® helps improve arc control. 9.5kW of clean AC generator power accommodates a variety of tools and equipment. Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion. Run generator power and weld at the same time, without interruption. Equipped with Electronic Choke for automatic, no-hassle starting in any condition. In addition to the Electronic Choke, this machine comes equipped with Electronic Fuel Injection (EFI) and Electronic Throttle Body (ETB) for improved cold starts, arc stability, fuel economy and extended usability.
Key Features
- Compact Size
- Low Decibel Rating
- Clean AC Generator Power
- Simple Controls
- Easy to Service
- Electric Choke
- Electronic Fuel Injection
- Electronic Throttle Body
- Electric Fuel Pump
What's Included
- Lincoln Ranger 330MP Engine Driven Welder Generator
Note: Welding leads, running gear, remote controls, gas cylinders, and other accessories are sold separately unless specifically listed above.
Key Specifications
| Processes | Stick (SMAW), Flux-Cored (FCAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
|---|---|
| Rated Output | 292A / 31.7V / 100% (CC) 312A / 29.6V / 100% (CV) @ 104°F (40°C) |
| Output Range | 35-330A (CC) 15-30V (CV) |
| Open Circuit Voltage | 85VDC |
| Generator Output | 10,000W (Continuous) |
| Single-Phase Auxiliary Output | 11,500W Peak;10,000W Continuous;120/240V |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Rehlko CH749 |
| Engine Description | Electronic throttle with EFI, 2 Cylinder, 4 cycle, OHV, Air cooled, Aluminum block with Cast iron cylinder liners, electric fuel pump |
| Engine Horsepower | 26.5 HP |
| Fuel Type | Gas |
| Fuel Tank Size | 11 gal |
| Oil Capacity | 2 qt |
| Machine Dimensions | 36.4" L x 20" W x 26.4" H |
| Machine Weight | 426 lb |
Warranty
3 Years Parts and Labor - Engine warranted separately by engine manufacturer
| Spec Sheet | Click to Download  |
|---|
