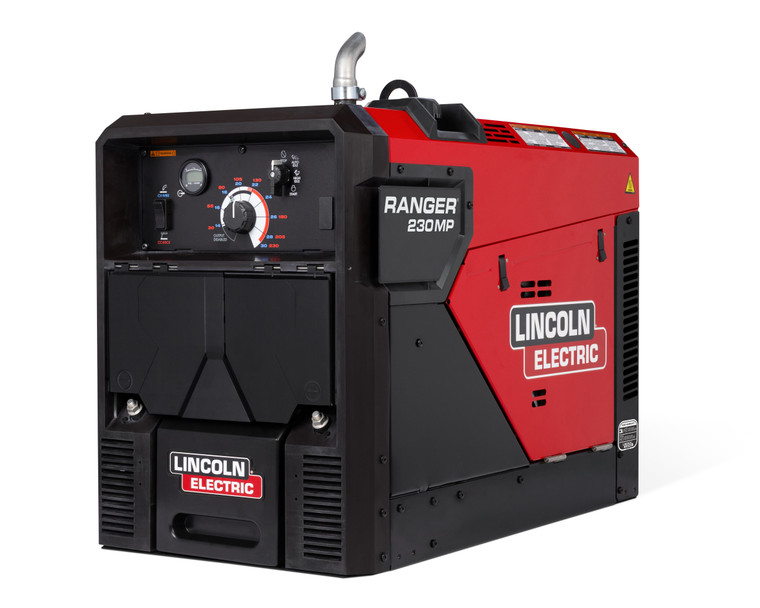

Lincoln Ranger 230MP Engine Driven Welder Generator with Rehlko Engine - K5938-1
The Lincoln Ranger 230MP with Rehlko Engine is a compact multi-process engine-driven welder/generator for Stick, MIG, and Flux-Cored welding, with dependable AC generator power for jobsite tools.
Simple welding. Reliable power.
The Ranger 230MP is built for crews that want straightforward setup, dependable output, and jobsite-ready generator power. A single glove-friendly control keeps operation simple, while the reduced-weight, balanced design helps improve mobility, service access, and uptime. It provides up to 10,500W peak and 9,500W continuous AC generator power with 120/240V output for running tools and equipment.
Key Features
- One-knob, glove-friendly control
- 230 amp multi-process welding output
- 10,500W peak / 9,500W continuous AC generator power
- Electronic choke
- Auto-idle
- Low-noise operation
- GFCI-protected receptacles
- Rear-engine service access
- Front-facing fuel gauge
- Electric fuel pump
What's Included
- Lincoln Ranger 230MP Engine Driven Welder Generator
Note: Welding leads, running gear, remote controls, gas cylinders, and other accessories are sold separately unless specifically listed above.
Key Specifications
| Processes | Stick (SMAW), Flux-Cored (FCAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
|---|---|
| Rated Output | 204A / 28.2V / 100% (CC/Stick) 227A / 25.4V / 100% (CV/Wire) 230A / 25V / 100% (Non-IEC Rating) @ 104°F (40°C) |
| Output Range | 35-230A (CC) 15-30V (CV) |
| Open Circuit Voltage | 85VDC |
| Generator Output | 10,500W Peak / 9,500W Continuous |
| Single-Phase Auxiliary Output | 120/240V AC; 40A @ 240V; 40A @ 120V each branch circuit; 20A @ 120V GFCI-protected total |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Rehlko CH730 |
| Engine Description | Electronic choke, 2-cylinder, 4-cycle, OHV, air-cooled engine with aluminum block, cast iron cylinder liners, and electric fuel pump |
| Engine Horsepower | 23.5 HP |
| Fuel Type | Gasoline |
| Fuel Tank Size | 11 gal |
| Oil Capacity | 2 qt |
| Machine Dimensions | 36.4" L x 20" W x 26.4" H |
| Machine Weight | 426 lb |
Warranty
3 Years Parts and Labor - Engine warranted separately by engine manufacturer
