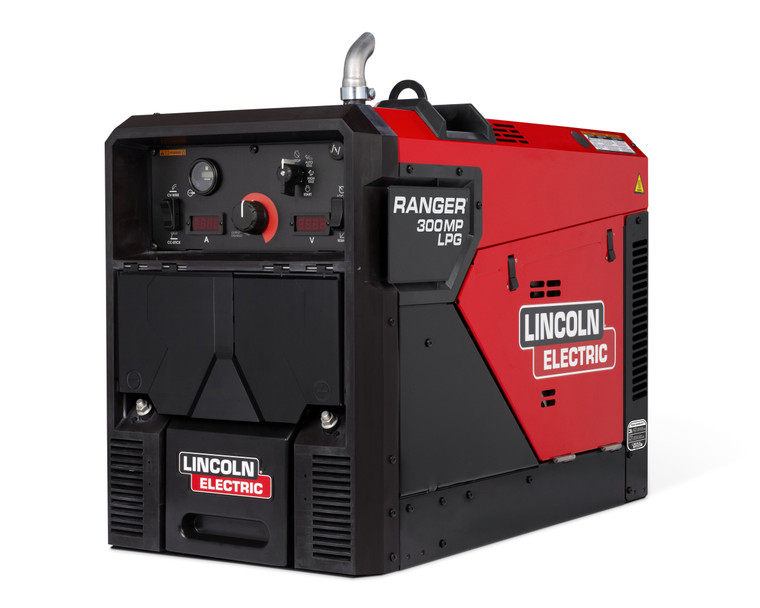

Lincoln Ranger 300MP LPG Engine Driven Welder Generator with Rehlko Engine - K5940-1
The Lincoln Ranger 300MP LPG with Rehlko Engine is a propane-powered multi-process engine-driven welder/generator with 300 amp output for restricted or specialized jobsites.
Propane-powered for restricted jobsites.
The Ranger 300MP LPG delivers higher LPG welding output while keeping setup and service simple. Its reduced-weight, balanced design, clear digital meters, and dependable generator power help crews stay productive where gasoline or diesel equipment may not be acceptable. It provides up to 10,000W peak and 9,500W continuous AC generator power with 120/240V output for tools and equipment.
Key Features
- One-knob, glove-friendly control
- 300 amp multi-process welding output
- LPG fuel system for restricted or specialized jobsites
- 10,000W peak / 9,500W continuous AC generator power
- Digital amps and volts meters
- Auto-idle
- Low-noise operation
- GFCI-protected receptacles
- Rear-engine service access
- Front-facing engine hour display
What's Included
- Lincoln Ranger 300MP LPG Engine Driven Welder Generator
Note: Welding leads, running gear, remote controls, gas cylinders, and other accessories are sold separately unless specifically listed above.
Key Specifications
| Processes | Stick (SMAW), Flux-Cored (FCAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
|---|---|
| Rated Output | 250A / 30V / 100% (CC/Stick) 272A / 27.6V / 100% (CV/Wire) 300A / 25V / 100% (Non-IEC Rating) @ 104°F (40°C) |
| Output Range | 35-300A (CC) 15-30V (CV) |
| Open Circuit Voltage | 85VDC |
| Generator Output | 10,000W Peak / 9,500W Continuous |
| Single-Phase Auxiliary Output | 120/240V AC; 40A @ 240V; 40A @ 120V each branch circuit; 20A @ 120V GFCI-protected total |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Rehlko CH730 LP |
| Engine Description | Manual choke, 2-cylinder, 4-cycle, OHV, air-cooled engine with aluminum block and cast iron cylinder liners |
| Engine Horsepower | 21.5 HP |
| Fuel Type | LPG |
| Oil Capacity | 2 qt |
| Machine Dimensions | 36.4" L x 20" W x 26.4" H |
| Machine Weight | 424 lb |
Warranty
3 Years Parts and Labor - Engine warranted separately by engine manufacturer
