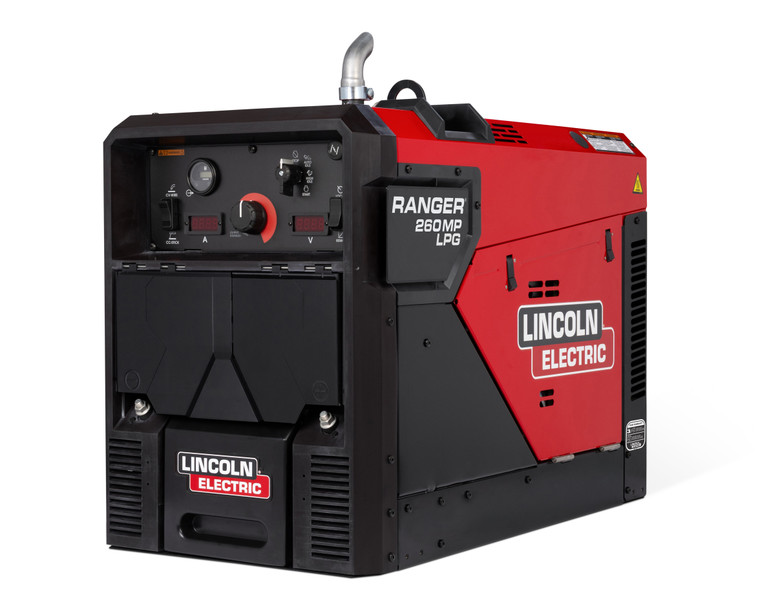

Lincoln Ranger 260MP LPG Engine Driven Welder Generator (Rehlko) K5939-1
Ranger 260MP LPG Engine Driven Welder Generator (Rehlko) is a simple and reliable machine with excellent multi-process capability for Stick, MIG, Flux-cored, while providing clean AC generator output.
Simple. Reliable. Ranger.
The Ranger 260MP LPG engine driven welder generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with simple controls operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment. The Ranger 260MP engine driven welder generator features an industry-leading design that is smaller and quieter compared to other machines in its class. The Chopper Technology® helps improve arc control. 9.5kW of clean AC generator power accommodates a variety of tools and equipment. Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion. Run generator power and weld at the same time, without interruption. Equipped with Electronic Choke for automatic, no-hassle starting in any condition.
Key Features
- Compact Size
- Low Decibel Rating
- Clean AC Generator Power
- Simple Controls
- Easy to Service
What's Included
- Lincoln Ranger 260MP LPG Engine Driven Welder Generator
Note: Welding leads, running gear, remote controls, gas cylinders, and other accessories are sold separately unless specifically listed above.
Key Specifications
| Processes | Stick (SMAW), Flux-Cored (FCAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
|---|---|
| Rated Output | 231A / 29.2V / 100% (CC) 253A / 26.7V / 100% (CV) @ 104°F (40°C) |
| Output Range | 35-260A (CC) 15-30V (CV) |
| Open Circuit Voltage | 85VDC |
| Generator Output | 9,500W (Continuous) |
| Single-Phase Auxiliary Output | 10,000W Peak;9,500W Continuous;120/240V AC |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Rehlko CH730 LP |
| Engine Description | Manual choke, 2 Cylinder, 4 cycle, OHV, Air cooled, Aluminum block with Cast iron cylinder liners |
| Engine Horsepower | 21.5 HP |
| Fuel Type | LPG |
| Oil Capacity | 2 qt |
| Machine Dimensions | 36.4" L x 20" W x 26.4" H |
| Machine Weight | 426 lb |
Warranty
3 Years Parts and Labor - Engine warranted separately by engine manufacturer
| Spec Sheet | Click to Download |
|---|
