FUMES DON’T STAND A CHANCE

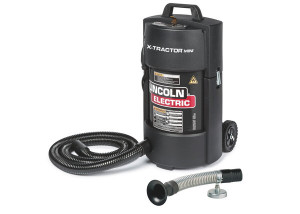

The X-Tractor Mini is a light weight; high vacuum portable fume extraction system designed to filter particulate and remove welding fumes. Intended for light duty welding applications; the quiet operation and portability of the Miniflex make this system an ideal solution for confined and hard to reach spaces.
- Create a safer work environment for welders/shop employees
- Effectively remove weld fume particulate with large surface area coverage and 99.7% filter unit efficiency
- Light weight; durable construction and portable design
- Compact size for use anywhere you go
Features
- Current Sensor - Automatic start/stop capability by sensing welding current
- Multiple Extraction Settings - Select extraction CFM setting based on environmental conditions
- Quiet Operation - Operates at a sound level of <80dB(A)
- Carbon Brush System - Monitors and alerts brush consumption based on 750 run hours
- System Airflow Check - Easily observe extraction performance
What's Included
- Extraction Hose with adapter - 8 ft. (2.4 mm) length; 1-3/4 in. (45 mm) I.D.
- LongLife-H main filter
- HEPA filter
- Carbon Brushes (set of 2) and seals for motor
- Filter, HEPA, X-Tractor Mini | KP2390-4
- Filter, LongLife-H, X-Tractor Mini | KP2390-1
- Filter One-Pak; X-Tractor Mini | KP2390-5
- Pre-Filter, X-Tractor Mini | KP2390-3
General
| Input Current | 12A |
| Input Hertz | 50/60 |
| Input Phase | 1 |
| Depth Inches | 16.8 |
| Depth Millimeters | 427 |
| Height Inches | 29 |
| Width Inches | 15.6 |
| Width Millimeters | 396 |
| Height Millimeters | 736 |
Application
| Automotive General Fabrication Heavy Fabrication Maintenance & Repair Repair Welding Robotics Shipbuilding Structural Fabrication |
|---|
Warranty
| Warranty | 3 Years |
|---|
