Lincoln Ranger 305 LPG Engine Driven Welder (Kohler) Ready Pak K5168-1

By: Lincoln Electric
SKU:
K5168-1
$13,015.00
Current Stock:
Adding to cart… The item has been added

Professional LPG (Liquid Propane Gas) welder/generator with excellent multi-process stick, MIG, and TIG welding for those environments where gasoline and diesel emissions are not acceptable. The Ready-Pak includes the welder/generator, undercarriage, and LPG Tank Holder in one preassembled package.

FOR SPECIALIZED ENVIRONMENTS

Choose the Ranger 305 LPG welder/generator for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.

    • Top-of-the-line Kohler® overhead valve (OHV) 25 HP Command® LPG engine
    • Digital weld meters monitor actual welding output
    • Built-in “hot” start for easier starts and restrikes

Multi-Process Welding
· Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
· It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding.
· CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

Digital Weld Meters
· Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.

Superior Arc Performance
· Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.

10,000 Watts Peak Single-Phase AC Generator Power
· 10,000 watts peak for motor starting.
· 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools.
· AC generator voltage is constant at 120V or 240V at any weld dial setting.

Rugged Reliability
· Welding and AC Generator Outputs rated at 104ºF (40ºC).

25 HP Kohler® LPG Engine
· LPG (Liquid Propane Gas) engine has plenty of horsepower.

Features

  • Multi-Process Welding
  • Superior Arc Performance
  • 10,000 Watts Peak Single-Phase AC Generator Power
  • Digital Weld Meters
  • 25 HP Kohler LPG Engine

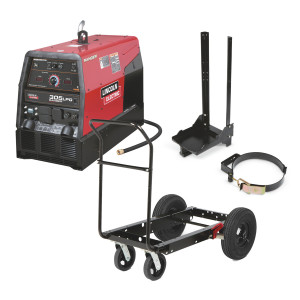

What's Included

  • K2937-1 Ranger 305 LPG
  • K1770-2 Factory Undercarriage (Pneumatic)
  • K1745-2 LPG Tank Holder in one preassembled package

Documentation

Product Weights & Dimensions

Dimensions (H x W x D) 30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm)
Net Weight 480 lbs (218 kg)

Machines

Machines Processes Stick (SMAW)
Gouging (CAC-A)
TIG (GTAW)
MIG (GMAW)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Max Rating 300A / 25V / 100% @ 104°F (40°C)
Output Range by Mode CC-Stick: 30 – 305 A,
Downhill Pipe (CC): 40-300 A,
Touch Start TIG: 20 – 250 A,
CV-Wire: 14 – 29 V,
Arc Gouging: 90 – 300 A
Rated Gouging Carbon Diameter 5/32 in (4.0 mm)

Engine Driven Welders

Single Phase Auxiliary Output 9000 Watts Continuous, 120/240V
Auxiliary Output Frequency 60 Hz
Receptacle Types NEMA 5-20R
NEMA 14-50R
Engine Brand & Model Kohler OHV Command CH730 LP
Engine Description 2 Cylinder Air-Cooled LP Engine
Engine Horsepower 25 HP
High Idle Operating Speed @ Rated Output 3600
Oil Capacity (qts.) 2.0
Oil Capacity (L) 1.9

Application

Typical Application Construction
Maintenance & Repair
Structural Welding

Warranty

Warranty 3 Years Parts and Labor - Engine warranted separately by engine manufacturer
