Lincoln POWER FEED 10R WIRE DRIVE SYSTEM - K1780-3

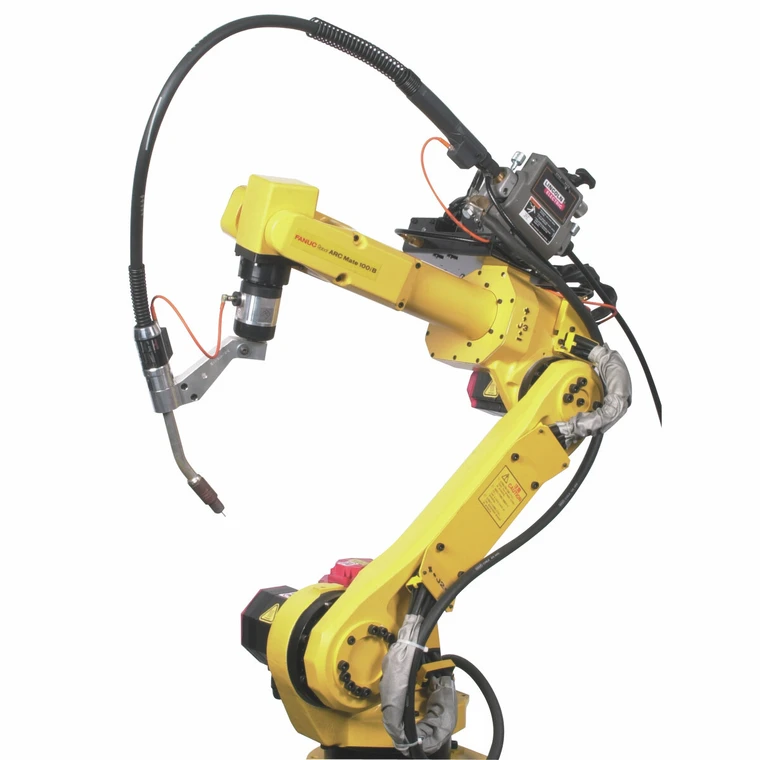

COMPACT WIRE DRIVE SYSTEM FOR AUTOMATIONThe Power Feed® 10R is a high performance, digitally controlled wire drive for modular, multi-process welding systems. It is specifically designed to mount to a robot arm or to use in hard automation applications. Close integration of the wire drive, power source and existing equipment creates the foundation for a system with superior welding performance and reliability. Integrated Design - Designed to “nest” in the upper arm of the FANUC® Robotics ARC Mate® iC family of arms Digital Control - Yields industry leading performance Fast Braking - Goes from maximum speed to zero in milliseconds, minimizing the chance of wire sticking in the puddle Two Speed Settings - Select low or high speed gears for a wide wire feed speed range Split Wire Guides - Trouble-free feeding and fast, tool-less wire installation, changeover and maintenance Tachometer Feedback - Provides calibration and precise control of wire feed speed Brass-to-Brass Connections - Enhanced electrical connectivity between torch and feeder results in improved arc performance Drive Roll Tension Gauge - Easy-to-read for accurate tension setting Self-loading Wire Capability - Easy set-up Modular Construction - Simplifies drive maintenance
Key Features
- Integrated Design
- Digital Control
- Fast Braking
- Two Speed Settings
- Split Wire Guides
Specifications
| Family | Power Feed |
|---|---|
| Warranty | 5 Years |
| Equipment Classification | Advanced |
| Welding Process | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Robotic Welding |
