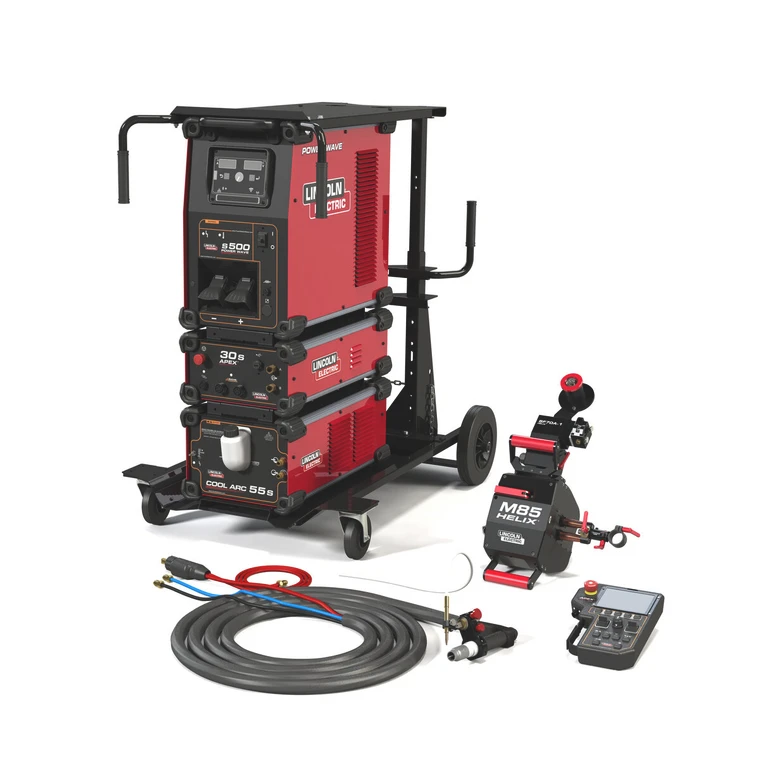

Complete mechanized welding system configured for GTAW
Key Features
- Synchronized System - Complete process control from a single user interface. Zero calibration required, closed loop motion with self diagnostics. Programs can be stored on the controller or a USB drive for effortless operator selection and set up. Utilizes on board data collection and logging or Checkpoint Production Monitoring System. USB port for quick transfer of data and information from system-to-system or system-to-PC
- Ergonomic - Pendant is lightweight and balanced for one-handed operation, with large buttons and controls for easy operation while wearing protective gloves.
- Durability - Designed to withstand operator and environmental abuse.
- Service and Maintenance - The controller is designed to be quickly serviced in a production environment.
- Easy to Operate - Simple and logical navigation is easy for operators to learn. Illuminated full color display with clear type for trouble-free reading.
What's Included
K2904-1 POWER WAVE S500 ADVANCED PROCESS WELDER, K52217-1 APEX 30S MECHANIZED CONTROLLER, K52101-1 HELIX M85 WELD HEAD, K52230-1 HELIX SF70A-1 ONBOARD WIRE FEEDER, K52216-1 APEX 3 SERIES TIG PENDANT, K52229-25C PTW-18M-500 MECH TIG TORCH W/CABLE 25FT, K52222-138 TORCH HOLDER ASSEMBLY 1.38 IN (34.9 MM), K52231-1 WIRE MANIPULATOR ASSEMBLY 1, BARREL TORCH, K52232-1 WIRE GUIDE TORCH CLAMP KIT, K3086-2 COOL ARC 55 S WATER COOLER, K3059-4 INVERTER AND WIRE FEEDER CART, K52130-25 PENDANT CABLE, 9EM21433-2 CAM LOCK TERMINAL ADAPTER, S31281-USB FLASH DRIVE 8GB, M23516 APEX 30M CRATE
Specifications
| Family Name | Apex |
| Warranty Length | Power Supply - 3 Years; Controller, Pendant, Weld Head - 1 Year; Cables, Acessories - 30 Days |
| Processes | TIG (GTAW) |
| Equipment Classification | Advanced |
| Welding Technology | Inverter/Chopper |
| Input Phase | 3Ph |
| Input Voltage Type | Power Connect |
| Input Frequency | 50;60;50/60 |
| Output Polarity | DC |
| Output Mode | CC;CV;CC/CV |
| Max Output | 500-599 |
| Equipment Technologies | Arclink;Data Export Capable;USB |
| Weight | 650 lb. |
| Width | 37 in. |
| Height | 63 in. |
| Depth | 52 in. |
