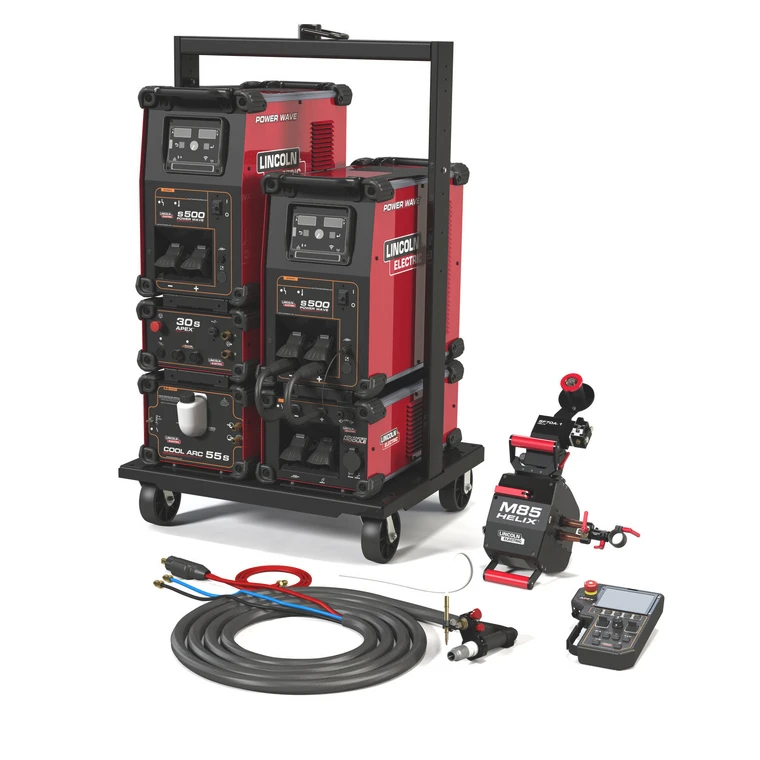

Complete mechanized welding system configured for hot wire GTAW
Key Features
- Synchronized System - Complete process control from a single user interface. Zero calibration required, closed loop motion with self diagnostics. Programs can be stored on the controller or a USB drive for effortless operator selection and set up. Utilizes on board data collection and logging or Checkpoint Production Monitoring System. USB port for quick transfer of data and information from system-to-system or system-to-PC
- Ergonomic - Pendant is lightweight and balanced for one-handed operation, with large buttons and controls for easy operation while wearing protective gloves.
- Durability - Designed to withstand operator and environmental abuse.
- Service and Maintenance - The controller is designed to be quickly serviced in a production environment.
- Easy to Operate - Simple and logical navigation is easy for operators to learn. Illuminated full color display with clear type for trouble-free reading.
What's Included
K2904-1 POWER WAVE S500 ADVANCED PROCESS WELDER, K3685-1 POWER WAVE ADVANCED MODULE, K52217-1 APEX 30S MECHANIZED CONTROLLER, K52226-1 AL BRIDGE KIT, K52101-1 HELIX M85 WELD HEAD, K52230-1 HELIX SF70A-1 ONBOARD WIRE FEEDER, K52216-1 APEX 3 SERIES TIG PENDANT, K52229-25C PTW-18M-500 MECH TIG TORCH W/CABLE 25FT, K52222-138 TORCH HOLDER ASSEMBLY 1.38 IN (34.9 MM), K52231-1 WIRE MANIPULATOR ASSEMBLY 1 BARREL TORCH, K52232-1 WIRE GUIDE TORCH CLAMP KIT, K3086-2 COOL ARC 55 S WATER COOLE, K52236-1 APEX LIFT CART, K52130-25 PENDANT CABLE, K1543-8 ARCLINK/LINC-NET CONTROL CABLE 8 FT (2.4 M), K52228-1 HOT WIRE TIG SENSE LEAD ADAPTER, M23131-28 HOT WIRE WELD CABLE 28FT, S32536 BRASS THIN HEX NUT 7/16-20, 9EM21433-2 CAM LOCK TERMINAL ADAPTER, S31281 USB FLASH DRIVE 8GB, M23330 CRATE APEX SYSTEMS
Specifications
| Family Name | Apex |
| Warranty Length | Power Supply - 3 Years; Controller, Pendant, Weld Head - 1 Year; Cables, Acessories - 30 Days |
| Processes | TIG (GTAW);Hot Wire GTAW |
| Equipment Classification | Advanced |
| Welding Technology | Inverter/Chopper |
| Input Phase | 3Ph |
| Input Voltage Type | Power Connect |
| Input Frequency | 50;60;50/60 |
| Output Polarity | DC |
| Output Mode | CC;CV;CC/CV |
| Max Output | 500-599 |
| Equipment Technologies | Arclink;Data Export Capable;USB |
| Weight | 1000 lb. |
| Width | 37 in. |
| Height | 63 in. |
| Depth | 52 in. |
