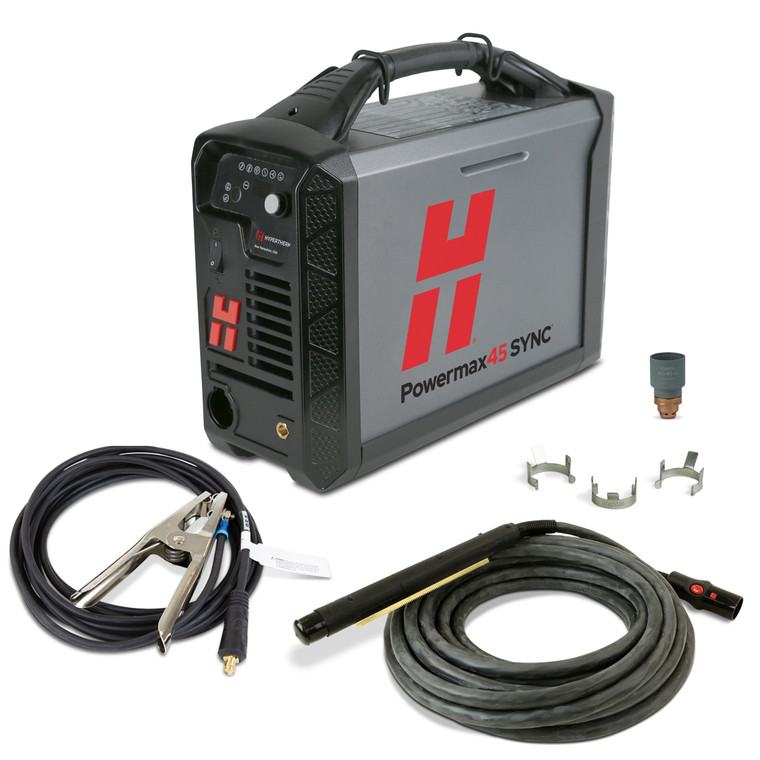

Hypertherm Powermax 45 SYNC Plasma Cutter w/ CPC Port, 50 ft. 180 Degree Machine Torch 088581

By: Hypertherm
Current Stock:
Adding to cart… The item has been added

Hypertherm Powermax 45 SYNC Plasma Cutter w/ 50 Foot Machine Torch - 088581

For metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.

Part of the Powermax® family, the Powermax45 SYNC features advanced torch communication for automated setup and patented single-piece cartridges for hand cutting, mechanized or robotic cutting, marking, or gouging.

Hypertherm Powermax 45 SYNC. Easy to use. Versatile. Reliable.


  • Powermax 45 Sync Power Source
  • 75 Degree Smart Sync Torch with 50ft lead and 50ft work clamp
  • (1) 45A Machine Cut Cartridge
  • (3) Ohmic Rings
  • Operator and Safety Manuals


  • Drag cutting - For dragging the torch directly across the workpiece
  • Fine feature cutting - For narrow kerf width with minimal dross and heat-affected zone
  • Flush cutting - For cutting closer to base materials using a 45 degree
  • Max control gouging - For precise metal removal, shallower gouge profiles and light metal washing
  • Max removal gouging - For aggressive metal removal, deep gouge profiles, and extreme metal washing
  • Mechanized cutting - For portable automation and table cutting


Recommended Cut Capacity Slow
22 mm (7/8") @ 250 mm/min (10 ipm)

Recommended Cut Capacity Fast
16 mm (5/8") @ 500 mm/min (20 ipm)

Severance Capacities
29 mm (1-1/8") @ 125 mm/min (5 ipm)

Pierce Capacities
12 mm (1/2")
*Pierce rating for handheld use or with automatic torch height control


Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • A patented single-piece cartridge eliminates operator error and simplifies operations
  • Advanced torch communication for automated setup improves cut quality
  • Easy to set up for mechanized usage with optional CNC interface and FastConnect™ torch connection
  • RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Up to 5x longer consumable life compared to competitors decreases operating costs.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC™ torches are engineered for rugged, industrial environments.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.


  • Gain greater cutting power than higher-amperage competitors
  • Expand application capabilities with a wide variety of specialty cartridges and torches
  • Cut and mark using the same FineCut® cartridge Industry-leading reliability
  • Powermax plasma cutters are known to last decades in the field, minimizing maintenance and downtime
  • SmartSYNC® torches are engineered for rugged industrial environments
  • Each Powermax component is tested to perform reliably in demanding conditions

Shop SmartSYNC consumables, a revolutionary new way to replace consumable parts with ease.

Compatible with Powermax SmartSYNC Torches.
