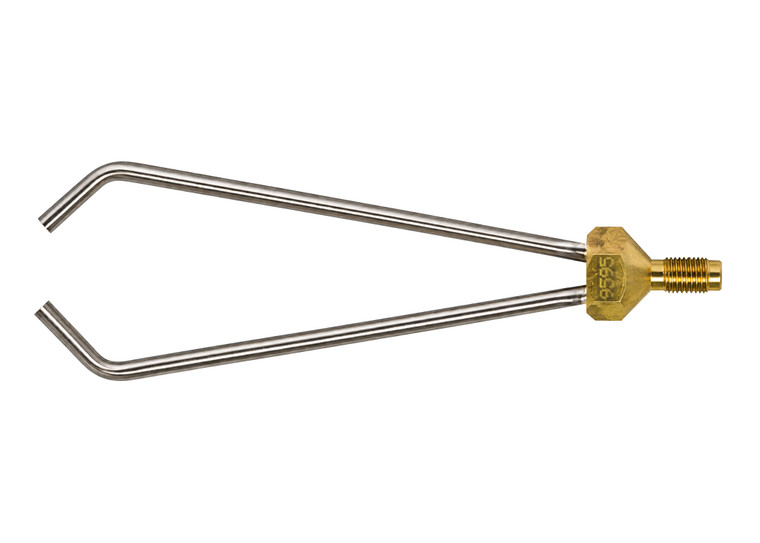

Harris Model QCHA9595 stainless steel and brass preformed twin tip using alternate fuel gases.
Model QCHA9595 preformed twin tip is designed for return bend brazing using alternate fuel gases. The swivel adaptor allows for adjustments both left and right. Ideally used where the tip can rest on the coil base plate protecting the plate while directing the flame onto the joint. It is also used for other applications where space is limited, and heat needs to be precisely directed. This model is 6.8 in. long and features two pre-bent tubes with a 2.25 in. gap between them, a 5/16 in. - 27 inlet connection and a 50° flame angle.
Features
- Stainless steel and brass base construction
- Designed for precise heat direction in confined spaces
- Pre-bent twin tubes with 2.25 in. gap and 50° flame angle
- 6.8 in. long
- Swivel adjustment on adaptor allows for right or left side travel
- 5/16 in. - 27 UNS-3A-RH inlet connection
- Use with low-cost alternate fuel gases - Not for use with acetylene
- Marked Harris with model number and/or tip size for easy identification
- Typical applications include projects requiring a lot of high directed heat, brazing large diameter tubing, return bend brazing
