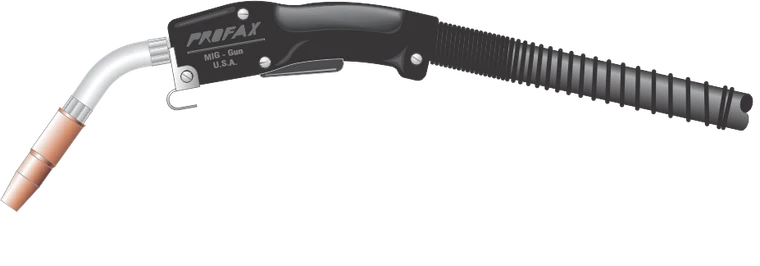

The Profax Platinum Series Lincoln LN-25 Pro 250 Amp .040-.045 15' MIG Welding Gun is a Profax Compact 250 Amp MIG gun with a 15 ft cable, configured for .040-.045 wire. The Compact series features an ergonomic handle, spare switch leads, an extra-flexible cable, spring strain reliefs and a jacketed gooseneck.
Connection: Configured for Lincoln feeder applications using the LAK-354 Lincoln control connection.
Key Features
- Ergonomic handle with spare switch leads
- Extra-flexible cable with spring strain reliefs
- Jacketed gooseneck
- 15 ft cable assembly set up for .040-.045 wire
- Uses the Profax 42-4045-15 15 ft wire conduit/liner for this wire range
- Supports multiple Profax nozzle, contact-tip, diffuser and conductor-tube configurations
The Compact 250 platform supports several front-end configurations, including adjustable 22-series nozzles, 24A adjustable nozzles, 23-series self-insulated nozzles and 24CT coarse-thread nozzles.
Compatible Machines / Wire Feeders
LN-25 Pro โ standard PROFAX back end with LAK 354 installed:
- LN-25 Pro (standard Profax back end with LAK-354 installed)
Profax specifies the standard back end with LAK-354 installed for LN-25 Pro applications.
