UltraCore HD-12C from Lincoln Electric is a mild steel, gas-shielded flux-cored wire designed to provide the high deposition rates and low temperature impact toughness equired in many heavy fabrication applications.
Key Features
- High Deposition Rates – increase weld deposition up to 14 lbs/hr out-of-position
- Flat Bead Appearance – fast freezing slag for a flat bead shape and increased productivity in all positions
- Wide Operating Range – operators can set the machine on a single setting and weld in all positions
- Little or No Pre-Weld Clean up Required – weld over light rust, mill scale and primer
- Low Temperature Impact Toughness – capable of exceeding 27 J (20 ft·lbf) at -40°C (-40°F)
What's Included

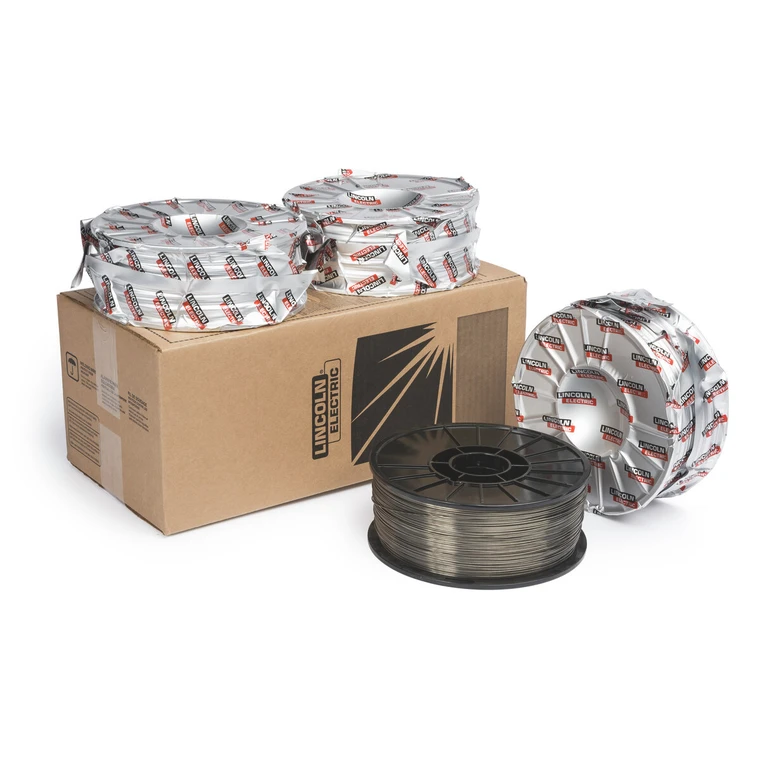

(4) 15 lb Plastic Spool
Specifications
| Family Name | UltraCore |
| Processes | Flux-Cored (FCAW);Flux-Cored Gas-Shielded (FCAW-G) |
| Winding | RDM |
| Welding Process | FCAWG |
| Alloy Type | SM |
| Weight | 15 lb. |
| Width | 8.5 in. |
| Height | 6.5 in. |
| Depth | 16.5 in. |
