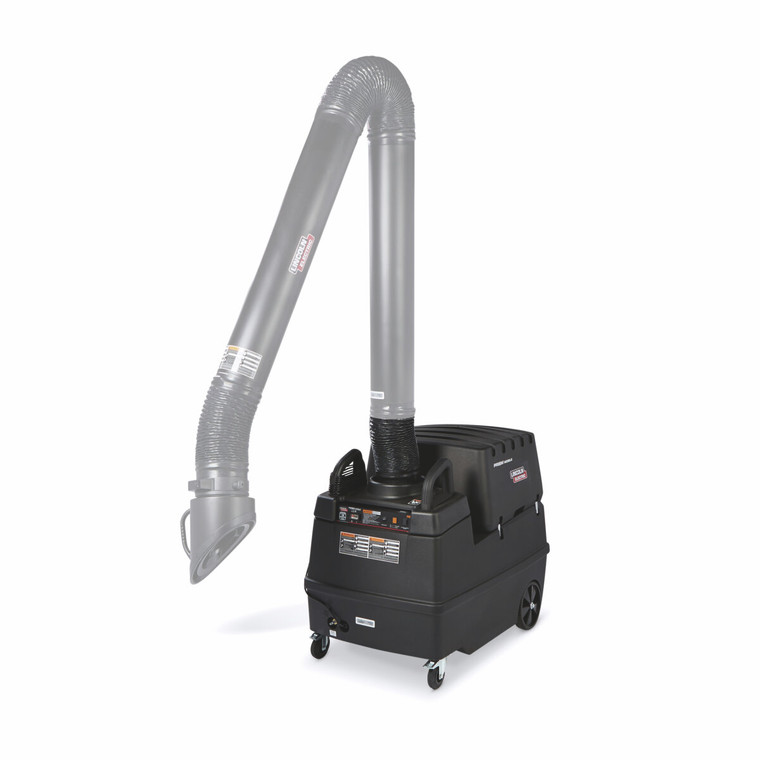

Mobile Welding Fume Extraction which provides 750 SCFM, to a large capacity filter, to reduce operating costs, and provide filtered air back into the shop. The Mechanized Cleaning features self cleans the filters to extend filter life.
Key Features
- Filter Cleaning - RotaPulse automatic filter cleaning system
- Extended Filter Life - Main filter lasts up to 4 times as long as Prism Mobile w/o cleaning
- Generous Airflow - 750 CFM with a flexibile extraction arm. CFM level is dependent upon arm length; fan type and system maintenance.
- Internal Spark Arrestor - Functions as a pre-filter for larger sized particulate, which prevents sparks from reaching the filter.
- Made in U.S.A. of U.S. and foreign content
What's Included
(1) Prism Mobile w/ Plastic Housing, (1) Flexible Hose 2 ft (0.6 m)
Specifications
| Family Name | Mobiflex |
| Warranty Length | 1 Years |
| Processes | Stick (SMAW);Flux-Cored (FCAW);TIG (GTAW);MIG (GMAW) |
| Equipment Classification | Heavy Industrial |
| Input Phase | 1Ph |
| Input Voltage Type | Single |
| Input Frequency | 60 |
| Weight | 274 lb. |
| Width | 32 in. |
| Height | 41 in. |
| Depth | 46 in. |
