The SP-180T can help you get it done for farm, light fabrication, auto or home projects. Just plug it into a 208 or 230 volt outlet in your garage, barn or shop.
FEATURES
- Superior Arc Performance – Forgiving arc and simple tapped voltage control make dialing in your application easy. Smooth arc starts with minimal spatter. Wide 30-180 amp welding output range.
- Precise Wire Drive – Precision full adjustment drive system reduces chance of wire tangling and crushing. Brass-to-Brass gun connections for enhanced conductivity. Large industrial closeddesign drive motor for improved torque and trouble-free performance.
- No Hassle Tool-less Design – for wire spool mounting, wire drive service and polarity changes.
- Spool Gun Capable – Add the economical Magnum® 100SG spool gun for enhanced aluminum wire feeding performance.
- Toughest PC Board Protection in the industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.
APPLICATIONS
- Metal Fabrication
- Maintenance and Repair
- Autobody/Farm
- Light Industrial

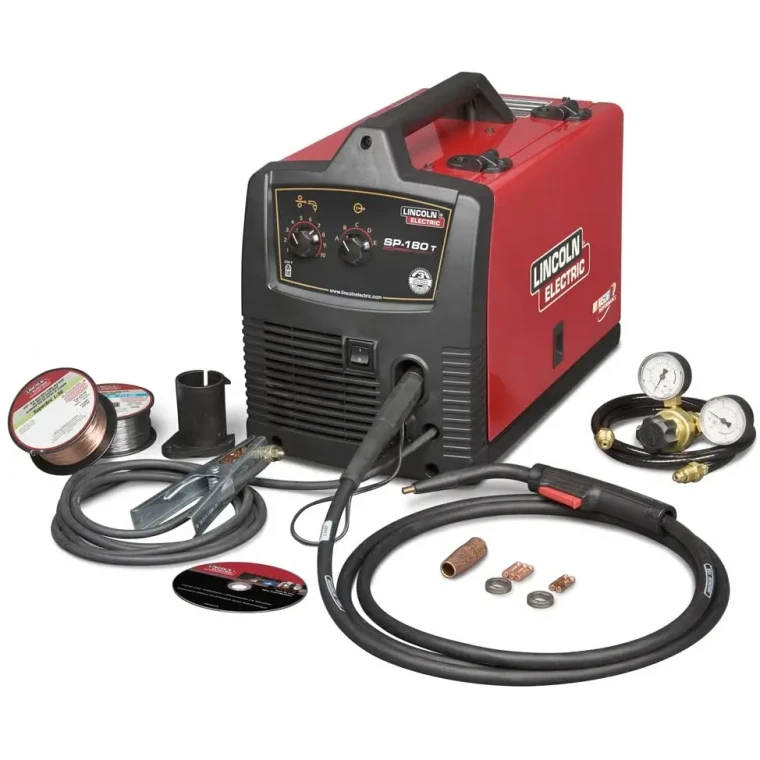

WHAT'S INCLUDED
- Magnum® PRO 100L Gun, 10 ft.
- Gas and Gasless Nozzles
- Gas Diffuser
- Cable Liner
- .025 in. and .035 in. Contact Tips
- Work Cable and Clamp
- Adjustable Gas Regulator and Hose
- Spindle Adapter
- Full-Size Spool of .025 in. SuperArc® L-56® Mild Steel MIG Wire
- Full-Size Spool of .035 in. Innershield® NR-211-MP Flux-Cored Wire
- Learn-To-Use DVD
- .025-.030 in. and .035 in. Smooth Drive Rolls for MIG
- .030-.045 in. Knurled Drive Roll for FCAW
WELDING CAPABILITIES
Recommended welding capabilities for the Lincoln Electric SP-180T using Lincoln Electric welding wire.
Flux-Cored Welding - Steel
| Wire Diameter | Recommended Wire | Single Pass | Multiple Pass |
|---|---|---|---|
| .030" | Innershield® NR-211-MP | 18 ga. - 3/16" | 1/4" - 5/16" |
| .035" | Innershield® NR-211-MP | 18 ga. - 3/16" | 1/4" - 5/16" |
| .045" | Innershield® NR-212 | 18 ga. - 3/16" | 1/4" - 1/2" |
MIG Welding - Steel
| Wire Diameter | Recommended Wire | Single Pass | Multiple Pass |
|---|---|---|---|
| .025" | SuperArc® L-56® | 24 ga. - 10 ga. | — |
| .030" | SuperArc® L-56® | 20 ga. - 10 ga. | — |
| .035" | SuperArc® L-56® | 14 ga. - 3/16" | — |
MIG Welding - Aluminum
| Wire Diameter | Recommended Wire | Single Pass | Multiple Pass |
|---|---|---|---|
| .035" | SuperGlaze® 4043 | 22 ga. - 3/16" | — |
