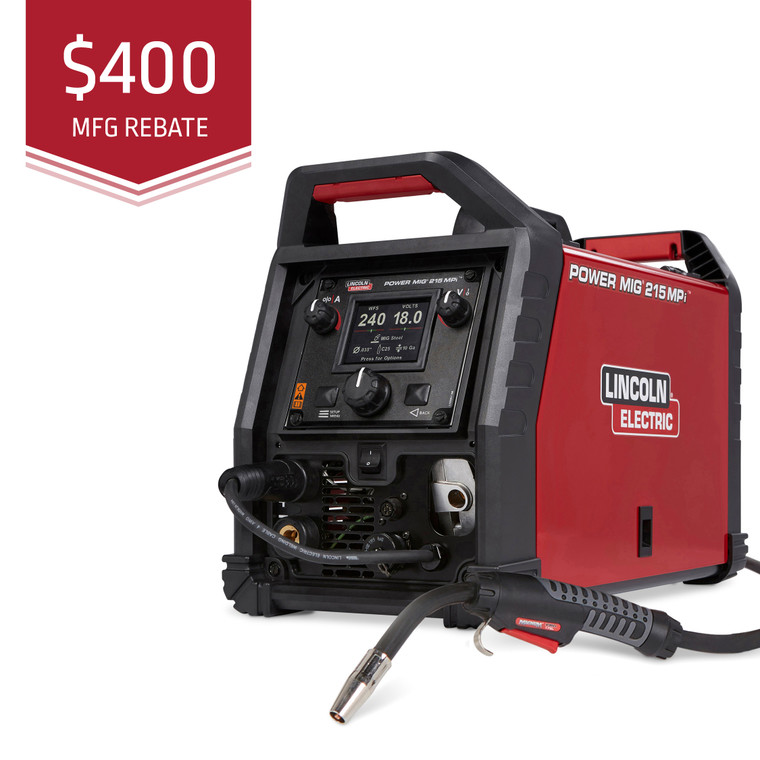

Lincoln Power MIG 215 MPi Multi-Process Welder K4876-1

Lincoln Electric
SKU:
K4876-1
$1,999.00
Current Stock:
Adding to cart… The item has been added

LIMITED-TIME OFFER (US Only)!

Buy a POWER MIG 215 MPi Multi-Process Welder and receive a $400 VISA gift card rebate.

Redeem Rebate Here


Add accessories and filler metals for more savings:

  • Spend $100 in qualifying products** to get a $50 Rebate
  • Spend $250 in qualifying products** to get a $100 Rebate
  • Spend $500 in qualifying products** to get a $200 Rebate

*Stack & Save offer only available with purchase of rebated machine. Excludes welders and plasma cutters.

SIMPLE, VERSATILE, RELIABLE

The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.

KEY FEATURES

  • Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
  • Built in TIG Solenoid and Foot Pedal Adapter The POWER MIG 215 MPi welder isdesigned to accept a TIG torch, no install required.
  • Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
  • Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
  • ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
  • Memory Capability - Easily recall saved settings to get welding faster.
  • Lightweight and Portable - Only 48 lbs.

Processes

MIG, Flux-Cored, DC Stick, DC TIG

Applications

Metal Fabrication, Maintenance and Repair, Autobody/Farm, Light Industrial

Product Number

K4876-1 - POWER MIG 215 MPi

WHAT’S INCLUDED

  • Magnum® PRO 175L Gun, 10 ft (3.0 m)
  • 230V to 120V power cord adapter
  • Work Cable and Clamp
  • Electrode Holder and Lead Assembly
  • Adjustable Gas Regulator and Hose
  • Gun Cable Liner (pre-installed in gun)
  • Spindle Adapter
  • Sample 1 lb (0.45 kg) 0.030 in (0.8 mm) Spool of SuperArc® L-56® Mild Steel MIG Wire
  • 0.030 in (0.8mm) Contact Tip (Installed)
  • 0.030 - 0.035 in (0.8 - 0.9 mm) Drive Roll (Installed)
  • 0.030 - 0.045 in (0.8 - 1.1 mm) Knurled Drive Rolls
  • 0.025 - 0.035 in (0.6 - 0.9 mm) Wire Guide (Installed)

RECOMMENDED ACCESSORIES

  • K3269-1 -Magnum PRO 100SG Spool Gun
  • KP4140-1- Replacement Screen Shield
  • K1782-1 -PTA-17 Ultra-Flex™ TIG Torch 12.5 ft (3.8 m)
  • K1782-4- PTA-17 TIG Torch (25 ft 2pc)
  • K870 - Foot Amptrol™ - 25 ft. (7.6m) (6 pin)
  • K1622-1 -Twist Mate™ TIG Torch Adapter
  • KP508 - Parts Kit for PTA-17 TIG Torch
  • KP509 - Parts Kit for PTA-26 and PTW-18 TIG Torches
  • 3100546 - Model 355-2CD/Ar Pressure Compensated Flowmeter Regulator
  • K963-3 - Hand Amptrol™ Rotary Track Style 25 ft (7.6m) (6-Pin)
  • K814 - Arc Start Switch
  • K2377-1 -Small Canvas Cover

SPECIFICATIONS

  • Input Power: 120/230/1/60
  • Duty Cycle: 215A/24.8V/30%
  • Output Range: 120V (20-140A) 230V (20-220A)
  • Dimensions: 15.08 x 10.88 x 23.14
  • Weight: 48 lbs

DOCUMENTATION





Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) MIG: 105A/19.25V/40% 80A/18V/100%
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) TIG: 130A/15.2V/40% 100A/14V/100%
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) Stick: 85A/23.4V/40% 60A/22.4V/100%
Phase 1: Input Current at Max Rated Ouput #1 (Current) 22A
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) MIG: 215A/24.8V/30% 120A/20V/100%
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) TIG: 175A/17V/30% 110A/14.4V/100%
Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) Stick: 175A/27V/30% 110A/24.4V/100%
Phase 1: Input Current at MAX Rated Output #2 (Current) 29A

Product Weights & Dimensions

Dimensions (H x W x D) 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm)
Net Weight 48 lbs (21.8 kg)

Machines

Machines Processes Stick (SMAW)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
IEC Rating IP21S
Max Rating 220A
Output Range by Mode MIG: 20-220A
Number of Operators per Machine 1
Machines Communication Technology digital
Work Lead Connector Type Dinse
Welding Gun Cable Assembly Length Magnum PRO 175L
Work Cable Length 10 FT
Spool Gun Compatible (Duty) Light

Wire and TIG Feeders

UI type TFT - Graphic
Wire Feeders Processes MIG
Flux Cored
Contact Tips Included Yes
Maximum Wire Thickness 0.045 in (1.1 mm)
Minimum Wire Thickness 0.025 in (0.6 mm)
Sample MIG Wire Included Yes

Basic Specification

Input Voltage 120/230
Input Current 120V: 15A, 230V: 15.9A
Input Hertz 60
Input Power 120/230/1/60
Input Phase 1
Mode Icon CC/CV
Output Range 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V
Polarity DC
Rated Output 120V: 105A/19.3/40% 230V: 215A/24.8V/30%

Application

Typical Application Automotive
Brewery
Distillery
General Fabrication
Maintenance & Repair
Repair Welding

Warranty

Warranty 3 Years

Custom Field

WARRANTY 3 Years
