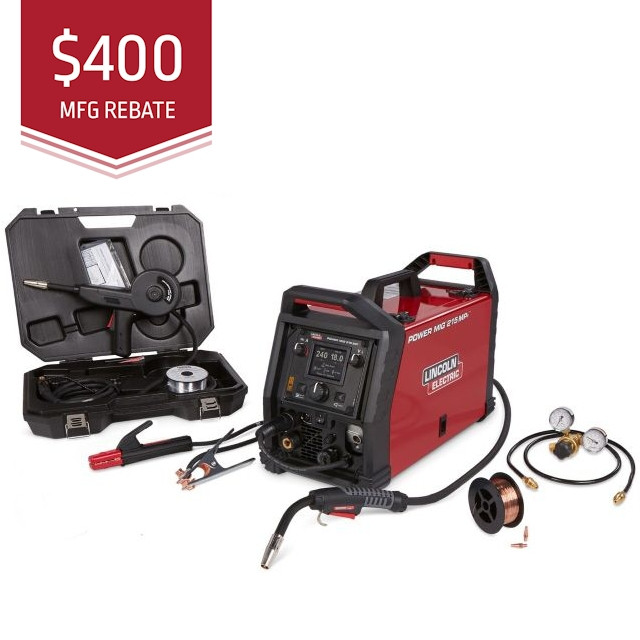

LIMITED-TIME OFFER (US Only)!
Buy a POWER MIG 215 MPi Multi-Process Welder and receive a $400 VISA gift card rebate.
Redeem Rebate
SIMPLE, VERSATILE, RELIABLE
The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.
KEY FEATURES
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built in TIG Solenoid and Foot Pedal Adapter The POWER MIG 215 MPi welder isdesigned to accept a TIG torch, no install required.
- Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
- Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable - Only 48 lbs.
Processes
MIG, Flux-Cored, DC Stick, DC TIG
Applications
Metal Fabrication, Maintenance and Repair, Autobody/Farm, Light Industrial
Product Number
K4877-1 - POWER MIG 215 MPi Aluminum One-Pak®

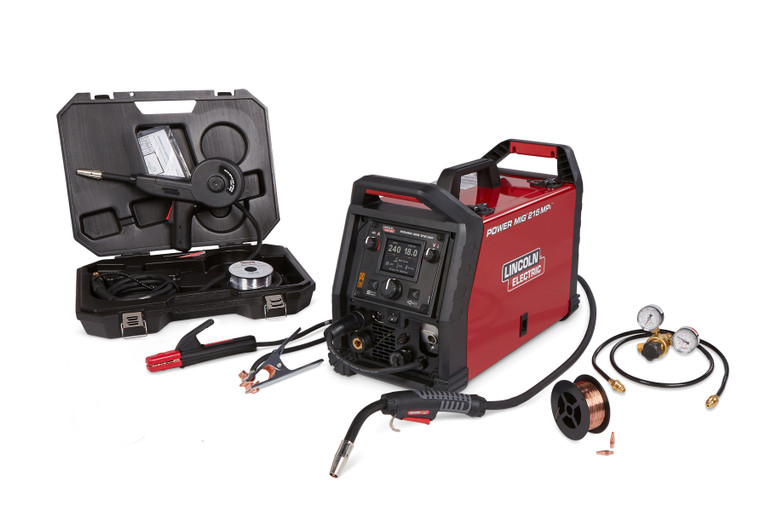

WHAT’S INCLUDED
- Magnum® PRO 175L Gun, 10 ft (3.0 m)
- 230V to 120V power cord adapter
- Work Cable and Clamp
- Electrode Holder and Lead Assembly
- Adjustable Gas Regulator and Hose
- Gun Cable Liner (pre-installed in gun)
- Spindle Adapter
- Sample 1 lb (0.45 kg) 0.030 in (0.8 mm) Spool of SuperArc® L-56® Mild Steel MIG Wire
- 0.030 in (0.8mm) Contact Tip (Installed)
- 0.030 - 0.035 in (0.8 - 0.9 mm) Drive Roll (Installed)
- 0.030 - 0.045 in (0.8 - 1.1 mm) Knurled Drive Rolls
- 0.025 - 0.035 in (0.6 - 0.9 mm) Wire Guide (Installed)
- Magnum PRO 100SG Spool Gun
RECOMMENDED ACCESSORIES
- K3269-1 -Magnum PRO 100SG Spool Gun
- KP4140-1- Replacement Screen Shield
- K1782-1 -PTA-17 Ultra-Flex™ TIG Torch 12.5 ft (3.8 m)
- K1782-4- PTA-17 TIG Torch (25 ft 2pc)
- K870 - Foot Amptrol™ - 25 ft. (7.6m) (6 pin)
- K1622-1 -Twist Mate™ TIG Torch Adapter
- KP508 - Parts Kit for PTA-17 TIG Torch
- KP509 - Parts Kit for PTA-26 and PTW-18 TIG Torches
- 3100546 - Model 355-2CD/Ar Pressure Compensated Flowmeter Regulator
- K963-3 - Hand Amptrol™ Rotary Track Style 25 ft (7.6m) (6-Pin)
- K814 - Arc Start Switch
- K2377-1 -Small Canvas Cover
SPECIFICATIONS
- Input Power: 120/230/1/60
- Duty Cycle: 215A/24.8V/30%
- Output Range: 120V (20-140A) 230V (20-220A)
- Dimensions: 15.08 x 10.88 x 23.14
- Weight: 48 lbs
DOCUMENTATION
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG: 105A/19.25V/40% 80A/18V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG: 130A/15.2V/40% 100A/14V/100% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | Stick: 85A/23.4V/40% 60A/22.4V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG: 215A/24.8V/30% 120A/20V/100% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG: 175A/17V/30% 110A/14.4V/100% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | Stick: 175A/27V/30% 110A/24.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
Product Weights & Dimensions
| Dimensions (H x W x D) | 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm) |
| Net Weight | 48 lbs (21.8 kg) |
Machines
| Machines Processes |
Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
| IEC Rating | IP21S |
| Max Rating | 220A |
| Output Range by Mode | MIG: 20-220A |
| Number of Operators per Machine | 1 |
| Machines Communication Technology | digital |
| Work Lead Connector Type | Dinse |
| Welding Gun Cable Assembly Length | Magnum PRO 175L |
| Work Cable Length | 10 FT |
| Spool Gun Compatible (Duty) | Light |
Wire and TIG Feeders
| UI type | TFT - Graphic |
| Wire Feeders Processes |
MIG Flux Cored |
| Contact Tips Included | Yes |
| Maximum Wire Thickness | 0.045 in (1.1 mm) |
| Minimum Wire Thickness | 0.025 in (0.6 mm) |
| Sample MIG Wire Included | Yes |
Basic Specification
| Input Voltage | 120/230 |
| Input Current | 120V: 15A, 230V: 15.9A |
| Input Hertz | 60 |
| Input Power | 120/230/1/60 |
| Input Phase | 1 |
| Mode Icon | CC/CV |
| Output Range | 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V |
| Polarity | DC |
| Rated Output | 120V: 105A/19.3/40% 230V: 215A/24.8V/30% |
Application
| Typical Application |
Automotive Brewery Distillery General Fabrication Maintenance & Repair Repair Welding |
Warranty
| Warranty | 3 Years |
-
