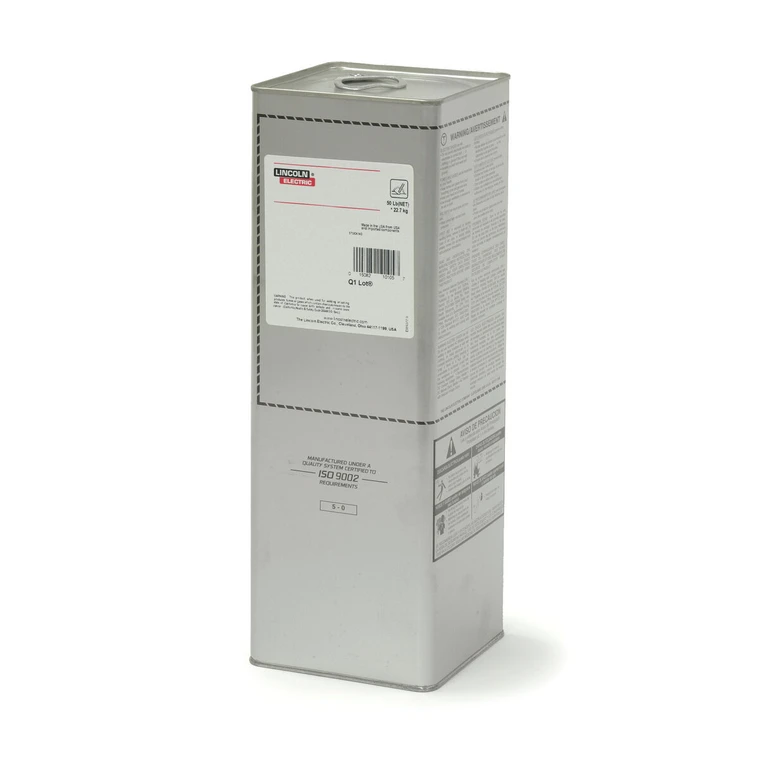

Lincoln Pipeliner 16P E7016-H4 Stick Electrode - 1,500 lb. Full Pallet
ONE PALLET AVAILABLE — SOLD ONLY AS A COMPLETE 1,500 LB. PALLET.
Lincoln Pipeliner 16P is a low-hydrogen mild steel stick electrode designed for demanding pipe welding applications. It is classified as AWS A5.1 E7016-H4 / E7016-1 H4 and is designed for applications including root pass welding on pipe.
Lincoln recommends DC- (DCEN) polarity for root pass welding. Pipeliner 16P is suitable for all-position welding except vertical down and was designed for use on applications including X60 and X70 grade pipe.
Product Features
- Low-hydrogen mild steel stick electrode
- Designed for pipe welding applications
- Recommended DC- (DCEN) polarity for root pass welding
- Suitable for X60 and X70 grade pipe
- All-position welding except vertical down
- Q2 Lot® controlled chemistry and mechanical properties
- Typical yield strength approximately 68,200 psi
- Typical tensile strength approximately 85,600 psi
- Typical elongation: 26%
Pallet Details
- Total Quantity: Approximately 1,500 lb.
- Package Size: 50 lb. cans
- Number of Cans: 30
- Electrode Diameter: 3/32 in.
- Electrode Length: 14 in.
- Lincoln Item Number: ED030916
- AWS Classification: E7016-H4 / E7016-1 H4
Recommended Current Range
For the 3/32 in. diameter electrode, Lincoln lists a typical operating range of 75–135 amps.
