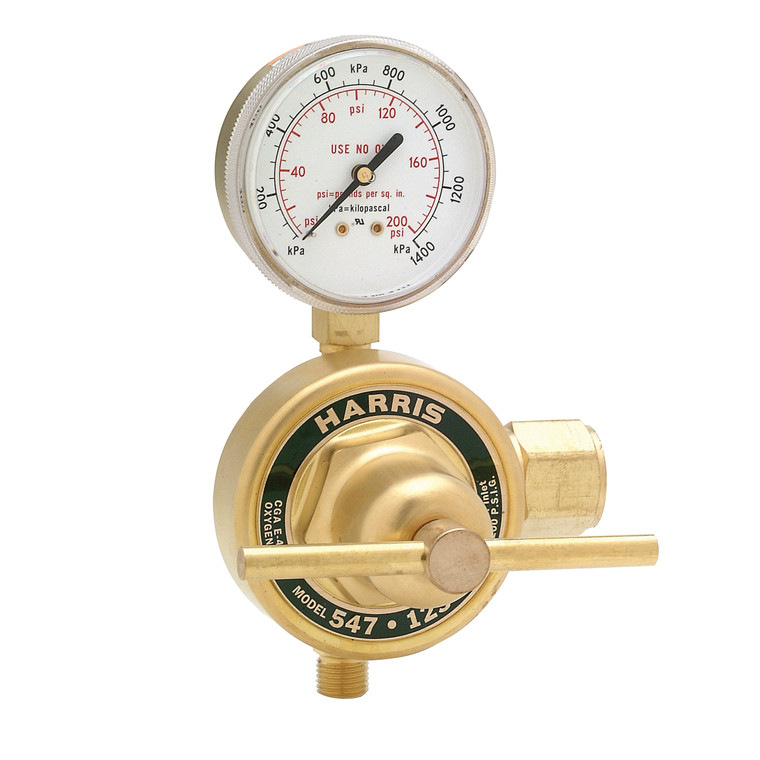

Harris Model 547-125-CR single-stage high-flow side-entry station regulator, 125 PSI, using oxygen.
Harris Model 547 heavy-duty, high flow side entry regulator is designed to deliver high gas flows from piping systems that are equipped with station regulator connection. This heavy-duty, high flow, station regulator has side entry access and 9/16 in. - 18 in. outlet connection. Features include brass body and bonnet, 2.5 in. brass dual scale gauge, brass T-screw adjusting handle and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat.
Features
- Designed to provide high gas flows from piping systems
- heavy-duty side-entry station regulator
- Forged brass body and bonnet for longer service life
- 2.5 in. brass dual scale easy-to-read gauge (psi/kPa)
- Easy-to-operate brass T-screw adjusting handle
- Large 2.75 in. neoprene diaphragm for greater sensitivity and improved pressure control
- One-piece encapsulated seat design with an internal filter to protect the PTFE Teflon® seat from particulate contamination
- Conforms to CGA E-4 standard for gas pressure regulators
- 7/8 in. - 14 RH - 024 inlet connection
- 9/16 in. - 18 LH outlet connection
