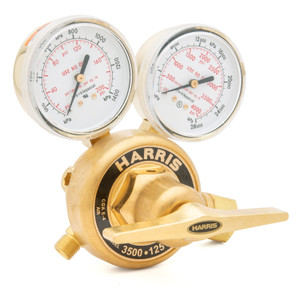

Model 3500-200-540 high-pressure, high-flow single-stage regulator.
Model 3500 high-pressure, high-flow regulator is specifically designed to provide high gas flows from cylinders and to supply manifold gas systems. It is also ideal for special high-flow cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.
Features
- Operates on high pressure cylinders up to 3000 PSIG
- Ideal for special high flow cylinder applications
- Easy-to-operate brass T-screw bar adjusting handle
- Brass body and bonnet for longer service life
- Large 2.75 in. neoprene diaphragm for improved pressure control
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F® seat from particulate contamination
- Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
- Equipped with dual outlet ports
- Features 3/8 in. NPT outlet connection auxiliary port
