4-Roll Heavy Duty Industrial Feeders
Designed for MIG and cored wire welding in job shop and manufacturing environments, these rugged wire feeders are built to deliver reliable performance day after day.
Features
- Patented 4-drive roll MAXTRAC® heavy-duty cast aluminum wire drive system provides reliable feeding and durability.
- Brass-to-brass gun connections for better electrical conductivity that results in better arc performance.
- Totally tool-less drive rolls and wire guide installation.
- Geardriven wire drive rolls slide on and off easily!
- Calibrated wire feed speed dial for precise and accurate settings.
What's Included
- LF-74 Wire Feeder
- Universal Wire Reel Stand | K1524-3
- Control Cable Extension - Male 14 pin to Female 14 pin - 10 ft (3 m) | K1797-10
- Drive Roll Kit .035, .045 (0.9, 1.2 mm) Solid Wire | KP1505-1
Documentation
-
Lincoln LF-74 Base Model Wire Feeder - K2426-4
$2,977.00$3,653.00 -

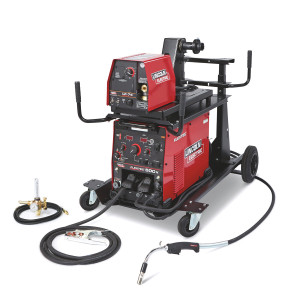

Lincoln Electric Flextec 500X/ LF-74 Heavy Duty One-Pak - K3612-2
$9,801.00$12,306.00 -
Lincoln Electric Flextec 500X/ LF-74 Heavy Duty Ready-Pak - K3608-2
$11,303.00$14,196.00 -
Lincoln Inverter and Wire Feeder Cart - K3059-4
$1,035.00$1,190.00 -
Lincoln Adapter for Competitive Power Sources K2335-2
$210.87$236.00
Product Weights & Dimensions
| Dimensions (H x W x D) | 15.3 in x 13 in x 27.7 in (389 mm x 330 mm x 704 mm) |
| Net Weight | 63 lbs (29 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Simple |
| Max Rated Output Capable | 500A |
| Max Wire Diameter (Solid) | 1/16 in (1.6 mm) |
| Max Wire Diameter (Cored) | 5/64 in (2 mm) |
| Max WFS | 800IPM |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes |
MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | General Fabrication |
Warranty
| Warranty | 3 Years |
