Submerged Arc Welding Self-Propelled Tractor

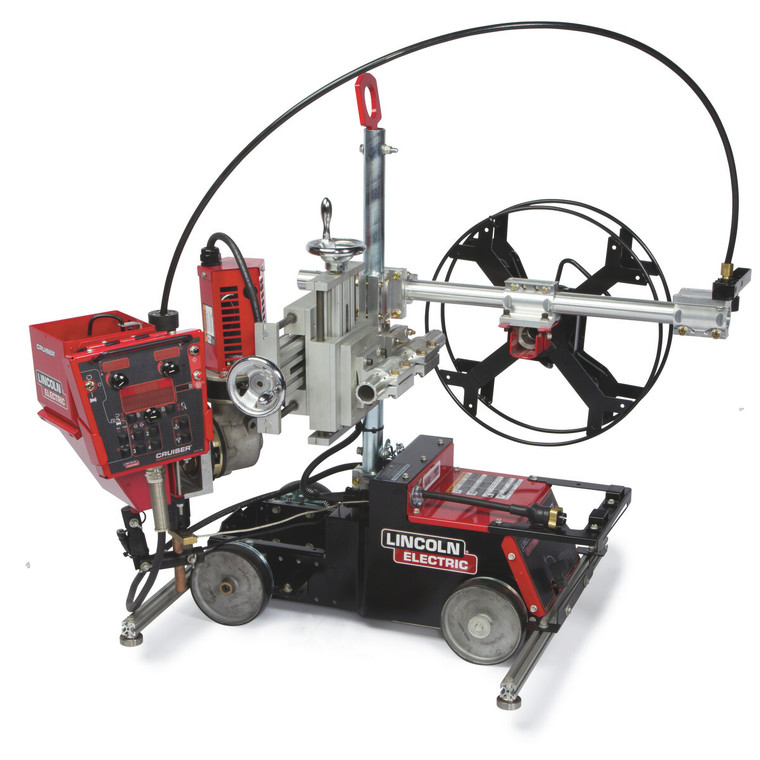

The self-propelled, modular Cruiser travel carriage, paired with the Power Wave AC/DC 1000 SD power source, can deliver deposition rates up to 30 lbs. (13.61 kg) per hour. The Cruiser SAW tractor is perfect for lengthy butt and fillet joints common to the welding application of bridge or barge decking, large tank fabrication, and shipbuilding.

Features

  • Reliable Operation — Strong, rigid, and stiff, especially where you need it most. Sturdy welded base frame. A substantial steel mast stands up for daily construction site use. Simple cast wheels - equipped with high-temperature and slip-resistant rubber tires. Robust tube and clamp design - trouble-free feeding component mounting. Adjustable, extended-length outriggers make it easy to guide tractor movement.
  • Advanced Control Pendant - Removable, lightweight, impact-resistant aluminum user interface can be used to save procedures and apply limits and lockouts for any or all controls.
  • Common Expendable Parts - All drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa® submerged arc wire drives.
  • Multiple Configurations - a flexible system that allows setup with or without a track and three- or four-wheel operation.

What's Included

  • Conduit Tubing – 5 ft. (1.5 m)
  • 5/32 in. (4.0 mm) 600 Amp Contact Nozzle Assembly
  • 5/32 in. (4.0 mm) Contact Tip
  • Nozzle Extension – 5 in. (127 mm)
  • Curved Nozzle Extension 45°
  • Nozzle Extension Insulator
  • Flux Tubing
  • Flux Hose Clamps
  • Wire Reel Assembly
  • Wheels for Track Operation
  • Cross Slide Assembly
  • Front and Rear Outriggers
  • Enclosed Wire Reel (2)
  • Note: Control cable not included.
  • Wire Straightener (Automatics) | K1733-5

<
