The Powermax30 XP is a highly portable plasma cutter designed to handle a wide range of jobs. A unique “two-in-one” design provides high-power capability for thick metal cutting, as well as FineCut consumables for detailed, thin metal cutting. In addition to cutting any electrically conductive metal, such as mild steel, stainless steel, or aluminum, this 30-amp plasma cutter can also gouge metal. The Powermax30 XP boasts dual-voltage capabilities. In addition to 240 V, you can plug it into a standard household socket and use as a 120 V plasma cutter.
Includes
- Hypertherm Powermax 30 XP Power supply, 15 ft. (4.5 m) Duramax LT hand torch with standard consumables, 15 ft. (4.5 m) work clamp
- 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits
- Operator and safety manuals
- Consumable kit with 1 standard nozzle, 1 electrode, 1 Fine Cut nozzle and 1 Fine Cut deflector
- Plastic carry case
- Carrying strap
- Leather gloves
- Shade 5 glasses
Benefits
Easy to use
- System includes everything you need to get you cutting quickly and easily
- Small size and light weight let you take the Hypertherm Powermax 30 XP just about anywhere
- Plug into any 120 or 240 V power (convenient Auto-Voltage technology and plug adapters included)
Superior performance in a compact package

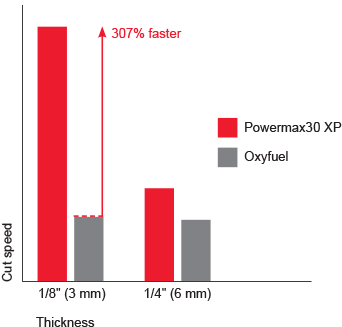

- Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations
- Built to withstand heavy-duty use in the most demanding environments
Two-in-one design for maximum versatility
- High-power cutting on thick metal
- Fine Cut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf
Cutting with 120 V input power
Use Fine Cut nozzle and deflector for cutting at 120 V input power. When operating at the maximum recommended output of 25 A, the cut capacities are:
- 6 mm (1/4") at 482 mm/min (19 ipm)
- 10 mm (3/8") at 203 mm/min (8 ipm)
- 12 mm (1/2") at 76 mm/min (3 ipm)
Hypertherm Duramax LT torch
- Designed to withstand impact and heat.
- Twice the consumable life* and 70% more efficient on average for lower cost of cutting.
Operating data
- 3/8" at 20 ipm
- 1/2" at 10 ipm
- 5/8" at 5 ipm
Cutting with 120 V input power
Use Fine Cut nozzle and deflector for cutting at 120 V input power. When operating at the maximum recommended output of 25 A, the cut capacities are:
- 1/4" at 19 ipm
- 3/8" at 8 ipm
- 1/2" at 3 ipm
Input voltages | 120-240 V, 1-PH, 50/60 Hz |
---|---|
Input current @ 3.8 kW | 120-240 V, 1-PH, 25-18.8 A |
Output current | 15-30 A |
Rated output voltage | 125 VDC |
Duty cycle @ 40°C (104°F) |
35%, 240 V 20%, 120 V |
Open circuit voltage (OCV) | 256 VDC |
Dimensions with handles | 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H |
Weight w/ 4,5 m (15') torch |
CSA: 9.7 kg (21.4 lbs) CE, CCC: 9.5 kg (21 lbs) |
Gas Supply | Clean, dry, oil-free air or nitrogen |
Recommended gas inlet flow rate / pressure |
113.3 l/min (4 scfm) at 5.5 bar (80 psi) |
Input power cable length | 3 m (10') |
Power supply type | Inverter - IGBT |
Engine drive requirement | 5.5 kW for full 30 A output |
Certifications |
CSA-certified for use in the Americas and Asia, except China CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China. |
Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. |
